Modular type automatic fire extinguishers are ceiling mounted type of extinguishers that automatically starts discharging when the ambient temperature turns 68 degree Celsius. They are provided in ABC powder type or clean agent type.
These fire extinguishers are used mostly where there is less human presence to operate the fire extinguisher. The following are the type of modular automatic fire extinguisher.

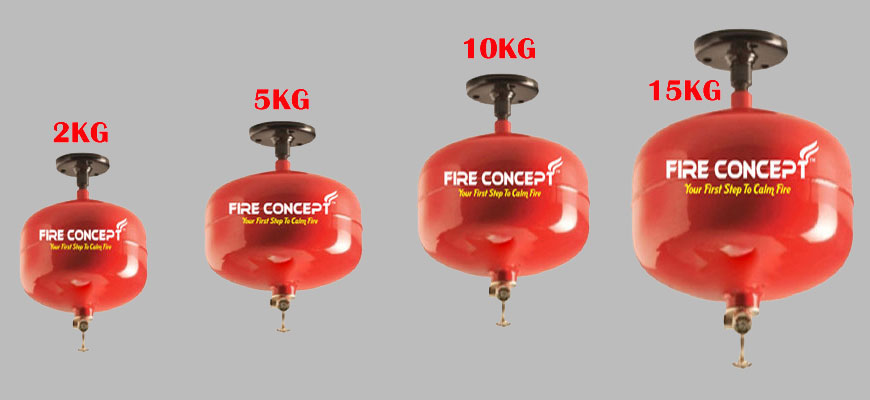

MODULAR TYPE AUTOMATIC FIRE EXTINGUISHER-

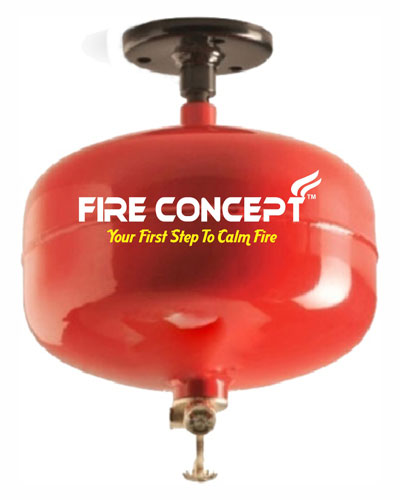

2 KG Modular Type Fire extinguisher
| CAPACITY | 2 KG |
|---|---|
| Discharge agent | ABC dry powder/ Cleaning agent |
| Area Coverage | 1 -1.5 MTR |
| Test pressure | 35 KG/ CM2 |
| Total weight | 3.8 KG |
| Charged pressure | 7-10 KGF/CM2 |
| Bulb temperature | 68 Degree |
5 KG Modular Type Fire Extinguisher
| CAPACITY | 5 KG |
|---|---|
| Discharge agent | ABC dry powder/ Cleaning agent |
| Area Coverage | 1.5 - 2 MTR |
| Test pressure | 35 KG/ CM2 |
| Total weight | 8.5 KG |
| Charged pressure | 7-10 KGF/CM2 |
| Bulb temperature | 68 Degree |
10 KG Modular Type Fire Extinguisher
| CAPACITY | 10 KG |
|---|---|
| Discharge agent | ABC dry powder/ Cleaning agent |
| Area Coverage | 1.75 – 2.25 MTR |
| Test pressure | 35 KG/ CM2 |
| Total weight | 15 KG |
| Charged pressure | 7-10 KGF/CM2 |
| Bulb temperature | 68 Degree |
15 KG Modular Type Fire Extinguisher
| CAPACITY | 15 KG |
|---|---|
| Discharge agent | ABC dry powder/ Cleaning agent |
| Area Coverage | 2 – 3 MTR |
| Test pressure | 35 KG/ CM2 |
| Total weight | 20 KG |
| Charged pressure | 10 - 13 KGF/CM2 |
| Bulb temperature | 68 Degree |
